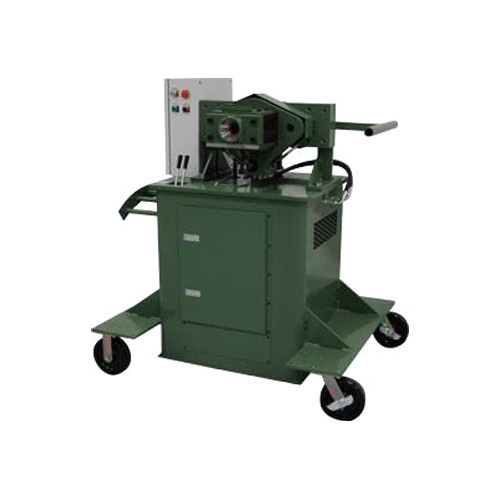

Push Pointing Machine
Push Pointing Machine
<<
Previous
Product Code : PPM05
Price And Quantity
- Minimum Order Quantity
- 1 Unit
- Price
- 175000 INR
Product Specifications
- Technology
- Laser
- Power Source
- Electricity
- Power
- 230 Volt (v)
- Surface Treatment
- Painted
- Dimension(L*W*H)
- 150x35100 Millimeter (mm)
- Weight (kg)
- 1500 Kilograms (kg)
- Color
- Dark Green
- Usage/Applications
- For Cutting Tool and Drawing Process
Product Description
Technical Specification:
- Hydraulic Push Pointer = HPP-25
- Maximum push force = 13MT
- Maximum Wire Diameter = 25mm
- Minimum Wire Diameter = 15mm
- Cycle Time = 1minute
- Hydraulic Push Pointer = HPP-45
- Maximum Push Force = 35MT
- Maximum Wire Diameter = 45mm
- Minimum wire Diameter = 25mm
- Cycle time = 1 minute
Features and Benefits:
- No Tools required to change the grips, die and guide.
- Manual valves (Joy Sticks) provide accurate and smooth control
- Wheels attached for portability
- Can be used without interrupting production
- Auto polarity correction
Technical Specification
| Minimum Order Quantity | 1 Unit |
| Brand | PMT |
| Country of Origin | Made in India |
| Max. Diameter of the pointing component | 50mm |
| Pointing | 150mm Length |
| Max. Power consumption | 5HP |
| Raw Material | Mild Steel and Stainless Steel |
| Capacity | 50mm |
Trade Information
- Payment Terms
- Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
- Supply Ability
- 10 Unit Per Month
- Delivery Time
- 8 Week
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- Main Domestic Market
- All India
