PANCHASARA MACHINE TOOLS

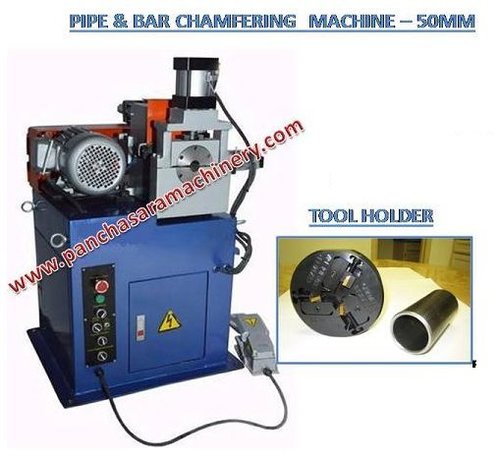

Pipe Bar Chamfering Machine
250000 INR/Unit
Product Details:
- Product Type Other
- Power Source Electricity
- Operating Type Semi Automatic
- Power 230 Volt (v)
- Surface Treatment Painted
- Dimension (L*W*H) 1981.2 x 1574.8 x 2413 Millimeter (mm)
- Weight (kg) 160 Kilograms (kg)
- Click to View more
X
Pipe Bar Chamfering Machine Price And Quantity
- 1 Unit
- 250000 INR/Unit
Pipe Bar Chamfering Machine Product Specifications
- 230 Volt (v)
- Semi Automatic
- Other
- 1981.2 x 1574.8 x 2413 Millimeter (mm)
- Painted
- Electricity
- Blue and Silver
- For Stationary
- 160 Kilograms (kg)
Pipe Bar Chamfering Machine Trade Information
- Cash Advance (CA) Letter of Credit (L/C) Cash in Advance (CID)
- 10 Unit Per Month
- 8 Week
- Asia Australia South America Eastern Europe Western Europe Middle East Africa Central America North America
- All India
Product Description
A chamfering machine is required to chamfer the pipe and bar from everywhere possible, such as inside, outside, and edges. The pipe and bar can be of any material, and based on which the rotation speed is decided. The pipe bar chamfering machine is designed to carry out the process in two steps. In the first step, the process is performed quickly and the next step calls to adjust the speed to achieve a smooth finish. The chamfering machine has a strong base, which means there will be little to no vibrations.
Technical Specification
- Semi Automatic Type
- Main Motor 2 H.P. (1440 ROM)
- Spindle RPM 750 950
- Air Pressure 4 7 kg cm2
- Chamfering Angle 46 60 70 80 degree
- Max. OD 50mm, Min. ID 8mm, Min. Length 50mm
Applicable Materials = MS, SS, Aluminum, Copper, Brass, Plastic
Specification
| Country of Origin | Made in India |
| Min Length | 48mm |
| Material | Aluminium |
| Size | 80mm pipe |
| Brand | PMT |
| Machine Capacity | 5 inch |
| Model Name/Number | PCM-80 |
| Chamfering Angel | 60 degree |
| Guide Ball Bearing | Ram Spindle |
| Type | Turning Type |
| Automation Grade | Automatic |
| Height Of Bevel | 5mm |
| Air Pressure | 7 kg/cm2 |
| Power | 3 HP |
| Max OD | 80mm |
| Main Motor | 2 HP |
| Weight | 350 kg |
| Speed | 10 sec/pcs |
