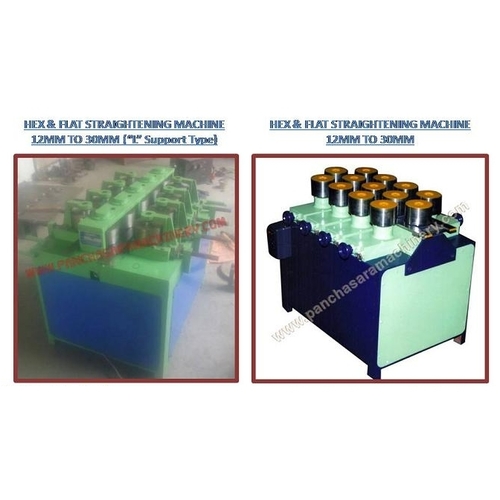

Hex & Flat Straightening Machine-L Support Type

Hex & Flat Straightening Machine-L Support Type
Hex & Flat Straightening Machine-L Support Type
Product Code : H&F2
Brand Name : Panchasara Machine Tools
Product Description

Technical Specification

Hex, Square & Flat Size : 12mm to 30mm

Roll size : Dia. = 150mm & Hight = 75mm

Total Rolls = 13nos.

Roll Material = EN 31 with Hard Temper + Graining

H.P. Recommended = 3 H.P. Motor, 1440 RPM

Size Setting by 8 sides

4 Sides fitting left side & 4 slides fittings right side

Roll Rotation by reduction gearbox

Reduction Gearbox no. 3, Standard

All Gear Fittings are only Helical Gears

ā€œLā€ type supports of All side rolls (option)
